Jumbo VMC Machine

• Accuracy
• 0.005 mm

• Color
• White & Blue

• Connectivity Options
• USB, Ethernet

• Control System
• Other, Fanuc / Siemens / Mitsubishi (as per requirement)

• Cooling System
• Automatic Coolant System

• Dimension (L*W*H)
• 3500 mm x 2300 mm x 2800 mm

• Drive
• Direct Drive

• Features
• Heavy Duty Structure, Rigid Design, High Precision

• Frame Type
• Monoblock

• Frequency
• 50 Hz

• Lubricating System
• Automatic Lubrication

• Machine Type
• CNC VMC Machine

• Model No
• V 1377 SUPER

• Motor Power
• 18.5 kW

• Noise Level
• Low

• Operating Temperature
• 10C to 40C

• Operating Type
• Automatic

• Power
• 18.5 kW

• Power Rating
• 25 HP

• Power Source
• Other, Electric

• Pressure
• Standard

• Product Type
• Other, Vertical Machining Center

• Production Capacity
• High Output

• Surface Treatment
• Other, Powder Coated

• Technology
• CNC

• Usage & Applications
• Metal Cutting, Milling, Drilling, Engraving

• Voltage
• 415 V

• Weight (kg)
• 6500 kg

• Accuracy
• 0.01 mm

• Color
• Gray & Blue

• Connectivity Options
• USB, Ethernet, RS232

• Control System
• Other, CNC Controller (Fanuc/Siemens/Mitsubishi)

• Cooling System
• Flood & Through Spindle Coolant

• Dimension (L*W*H)
• 6500 x 4000 x 4600 mm

• Drive
• Direct Drive/Servo Drive

• Features
• Heavy duty structure, high accuracy, rigid design, large table size, user-friendly interface

• Frame Type
• Rigid Box Structured Frame

• Frequency
• 50/60 Hz

• Lubricating System
• Automatic centralized lubrication

• Machine Type
• Double Column VMC

• Model No
• V 2199 SUPER

• Motor Power
• 40 kW

• Noise Level
• < 80 dB

• Operating Temperature
• 5C - 40C

• Operating Type
• Automatic

• Power
• 40 kW

• Power Rating
• 40 kW

• Power Source
• Other, Electric

• Pressure
• Standard operating pressure

• Product Type
• Other, Double Column VMC Machine

• Production Capacity
• 24/7 Continuous Operation

• Surface Treatment
• Other, Paint Coated

• Technology
• CNC

• Usage & Applications
• Precision machining of large workpieces, die & mould, aerospace components

• Voltage
• 380V / 415V

• Weight (kg)
• 35000 kg

• Accuracy
• 0.005 mm

• Color
• White & Grey

• Connectivity Options
• RS232, USB

• Control System
• Other, CNC Controller

• Cooling System
• Coolant Pump

• Dimension (L*W*H)
• 3500 x 2500 x 3000 mm

• Drive
• Direct Drive

• Features
• High Rigidity, Superior Accuracy, Safety Shields, Easy Maintenance

• Frame Type
• Heavy Duty Cast Iron

• Frequency
• 50 Hz

• Lubricating System
• Automatic Lubrication

• Machine Type
• Vertical Machining Center

• Model No

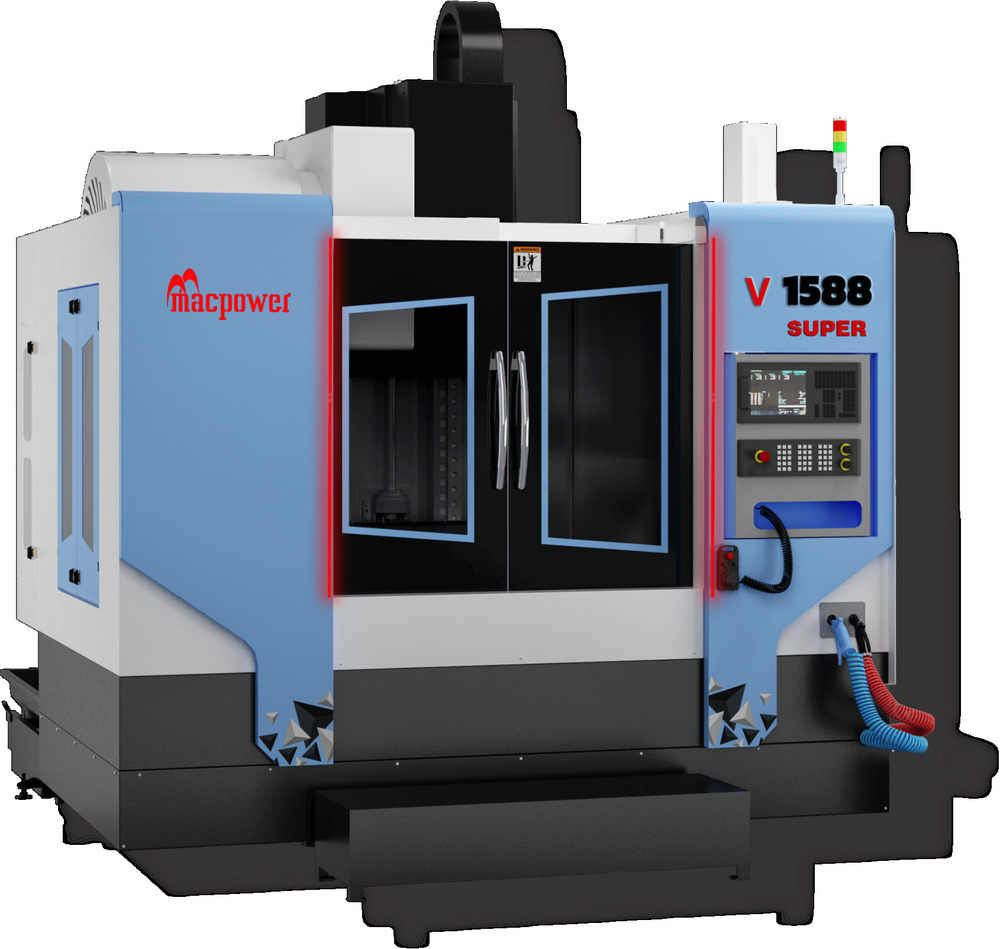

• V 1588 SUPER

• Motor Power
• 11 kW

• Noise Level
• <70 dB

• Operating Temperature
• 5oC to 45oC

• Operating Type
• Automatic

• Power
• 15 kW

• Power Rating
• 15 kW

• Power Source
• Other, Electric

• Pressure
• Standard

• Product Type
• Other, CNC Vertical Machining Center

• Production Capacity
• As per Application

• Surface Treatment
• Other, Paint Coated

• Technology
• CNC

• Usage & Applications
• Precision Machining, Milling, Drilling, Tapping of Metals

• Voltage
• 415 V

• Weight (kg)
• 7500 kg

• Accuracy
• 0.005 mm

• Color
• White & Blue

• Connectivity Options
• RS232, USB

• Control System
• CNC

• Cooling System
• Auto Coolant System

• Dimension (L*W*H)
• 3600 x 2400 x 3000 mm

• Drive
• Direct Drive

• Features
• High Rigidity, Precision Spindle, Large Work Area, Efficient Chip Removal

• Frame Type
• Heavy Duty Frame

• Frequency
• 50 Hz

• Lubricating System
• Automatic Lubrication

• Machine Type
• VMC

• Model No
• V 1688 SUPER

• Motor Power
• 15 kW

• Noise Level
• 75 dB

• Operating Temperature
• 5C to 40C

• Operating Type
• Automatic

• Power
• 20 kW

• Power Rating
• 20 kVA

• Power Source
• Other, Electric

• Pressure
• Hydraulic

• Product Type
• Other, Vertical Machining Center (VMC)

• Production Capacity
• High (varies based on operation)

• Surface Treatment
• Other, Powder Coated

• Technology
• CNC

• Usage & Applications
• Industrial Metal Cutting, Milling, Drilling, Tapping

• Voltage
• 415 V

• Weight (kg)
• 8200 kg

• Accuracy
• 0.01 mm

• Color
• Light Grey and Blue

• Connectivity Options
• Ethernet, USB

• Control System
• Other, Advanced CNC Controller

• Cooling System
• Flood Coolant System

• Dimension (L*W*H)
• 6300 x 5100 x 5700 mm

• Drive
• Servo Motor

• Features
• Heavy Duty Frame, High Stability, Superior Rigidity, Precision Spindle

• Frame Type
• Double Column

• Frequency
• 50 Hz

• Lubricating System
• Automatic Centralized Lubrication

• Machine Type
• VMC Double Column

• Model No
• V 1888 SUPER

• Motor Power
• 22 kW (Spindle Motor)

• Noise Level
• 80 dB

• Operating Temperature
• 5C to 45C

• Operating Type
• Other, Semi-Automatic

• Power
• 65 kW

• Power Rating
• 65 kW

• Power Source
• Other, Electric

• Pressure
• Standard atmospheric

• Product Type
• Other, Double Column VMC Machine

• Production Capacity
• Suitable For Heavy & Large Components

• Surface Treatment
• Other, Paint Coated

• Technology
• Other, CNC (Computer Numerical Control)

• Usage & Applications
• Precision Milling, Metal Component Manufacturing, Tool and Die Making

• Voltage
• 415 V

• Weight (kg)
• 66000 kg
