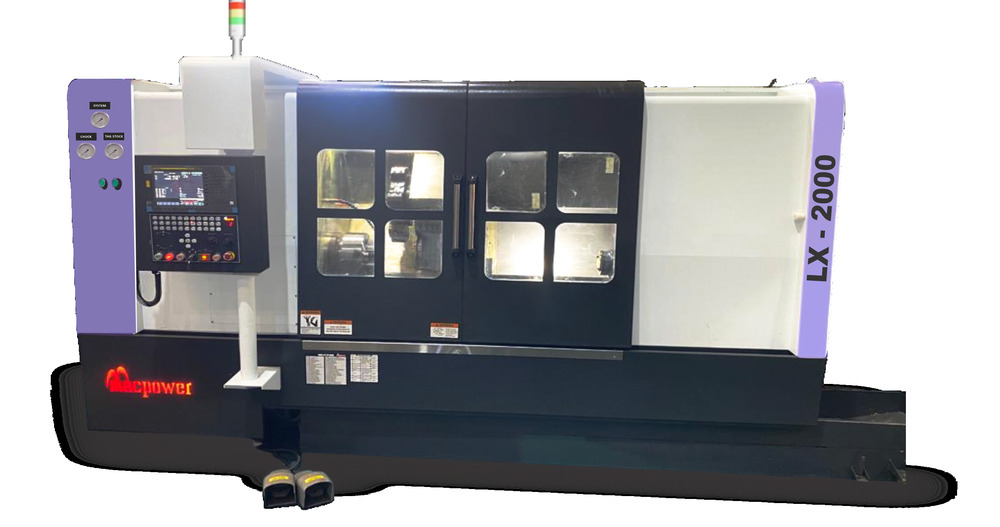

LX CNC Turning Center

• Automatic
• Yes

• Axial Choice
• X/Z Axis

• Bar Feeder
• Other, Optional

• Capacity
• Max Turning Diameter 420 mm, Turning Length 1050 mm

• Color
• Other, White & Blue

• Computerized
• Yes

• Dimension (L*W*H)
• 3300 x 1500 x 1800 mm

• Feature
• Other, Precision Machining, Heavy Duty

• General Use
• Industrial Metal Machining

• Material
• Other, Cast Iron Base, Metal Construction

• Motor
• Other, Main Spindle Motor 15/18.5 kW

• PLC Control
• Yes

• Power Consumption
• 15 kW

• Power Source
• Electric

• Product Type
• CNC Turning Center

• Rigidity
• High

• Spindle Speed
• 3500 rpm

• Type
• Other, Horizontal Type

• Voltage
• 415 V

• Weight (kg)
• 4800 kg

• Automatic
• Other, Fully Automatic

• Axial Choice
• 2 Axis (X/Z axes)

• Bar Feeder
• Other, Optional

• Capacity
• Turning Diameter 400 mm, Turning Length 1000 mm

• Color
• Other, White & Blue

• Computerized
• Yes

• Dimension (L*W*H)
• 3380 x 1750 x 2000 mm

• Feature
• Other, High Precision, Heavy Duty, Stable Performance, User-Friendly Interface

• General Use
• Industrial Metal Cutting, Turning Operations

• Material
• Other, Cast Iron Base, Hardened Guideways

• Motor
• Other, Main Spindle Motor 15/18.5 kW

• PLC Control
• Yes

• Power Consumption
• 15 kW

• Power Source
• Electric

• Product Type
• CNC Turning Center

• Rigidity
• Other, High Rigidity Structure

• Spindle Speed
• 3000 rpm (max)

• Table Size
• Not Applicable (Turning Center)

• Type
• Other, Horizontal CNC Lathe Machine

• Voltage
• 380V / 415V

• Weight (kg)
• 4500 kg

• Automatic
• Yes

• Axial Choice
• 2 Axis (X, Z)

• Bar Feeder
• Other, Optional

• Capacity
• Max Turning Diameter 360 mm

• Color
• Other, Blue and White

• Computerized
• Yes

• Dimension (L*W*H)
• 3200 x 1700 x 1900 mm

• Feature
• Other, High Speed, High Production Automation

• General Use
• Industrial Metal Turning Automation

• Material
• Other, Cast Iron Body, Hardened Guideways

• Motor
• Other, Spindle Motor 15/18.5 kW

• PLC Control
• Other, Siemens/Fanuc

• Power Consumption
• 15 kW

• Power Source
• Electric

• Product Type
• CNC Turning Center

• Rigidity
• Other, High Rigidity Mono-Block Bed

• Spindle Speed
• Up to 4500 rpm

• Type
• Horizontal

• Voltage
• 415 V

• Weight (kg)
• 5800

• Automatic
• Yes

• Axial Choice
• 2 Axis

• Bar Feeder
• Other, Optional

• Capacity
• Dia. 250 mm x Length 400 mm

• Color
• Other, White & Blue

• Computerized
• Yes

• Dimension (L*W*H)
• 2200 mm x 1300 mm x 1500 mm

• Feature
• Other, High Speed Turning, Precision, Low Noise

• General Use
• Industrial Machining

• Material
• Other, Cast Iron Body

• Motor
• Other, Servo Motor

• PLC Control
• Yes

• Power Consumption
• 7 kW

• Power Source
• Electric

• Product Type
• CNC Turning Center

• Rigidity
• High

• Spindle Speed
• 100-4000 rpm

• Table Size
• Standard

• Type
• Other, Automatic CNC Lathe

• Voltage
• 415 V

• Weight (kg)
• 2800 kg

• Automatic
• Yes

• Axial Choice
• 2 Axis (X & Z)

• Bar Feeder
• Other, Available (Optional Attachment)

• Capacity
• Max Turning Diameter: 400 mm | Max Turning Length: 650 mm

• Color
• Other, White & Blue

• Computerized
• Yes

• Dimension (L*W*H)
• 3100 x 1620 x 1850 mm

• Feature
• Other, High Precision, Heavy Job Capability, Programmable Automation

• General Use
• Machining Cylindrical/Symmetric Components

• Material
• Other, Cast Iron Base, Suitable for Steel, Aluminum, Brass, etc.

• Motor
• Other, Main Spindle Motor: 15/18.5 kW AC

• PLC Control
• Yes

• Power Consumption
• 10-12 kW (Approx.)

• Power Source
• Electric

• Product Type
• CNC Turning Center

• Rigidity
• Other, High Rigidity Structure

• Spindle Speed
• 50 - 3500 RPM

• Table Size
• Not Applicable (Uses Chuck or Collet)

• Type
• Other, Horizontal CNC Lathe

• Voltage
• 380V / 415V

• Weight (kg)
• 4000 Kg (Approx.)

• Automatic
• Yes

• Axial Choice
• 2 Axis (X, Z)

• Bar Feeder
• Other, Optional

• Capacity
• Max Turning Dia 250 mm, Max Turning Length 400 mm

• Color
• Other, White & Blue

• Computerized
• Yes

• Dimension (L*W*H)
• 2400 x 1450 x 1800 mm

• Feature
• Other, High Precision, Stable Performance, User Friendly Interface

• General Use
• Industrial Metal Machining

• Material
• Other, Cast Iron Base, Stainless Steel Covers

• Motor
• Other, High Precision Servo Motor

• PLC Control
• Yes

• Power Consumption
• 11 kW

• Power Source
• Electric

• Product Type
• CNC Turning Center

• Rigidity
• Other, Heavy Duty Structure

• Spindle Speed
• 3500 RPM

• Table Size
• Standard Chuck 200 mm

• Type
• Other, Horizontal CNC Lathe

• Voltage
• 380V / 415V

• Weight (kg)
• 2600 kg
